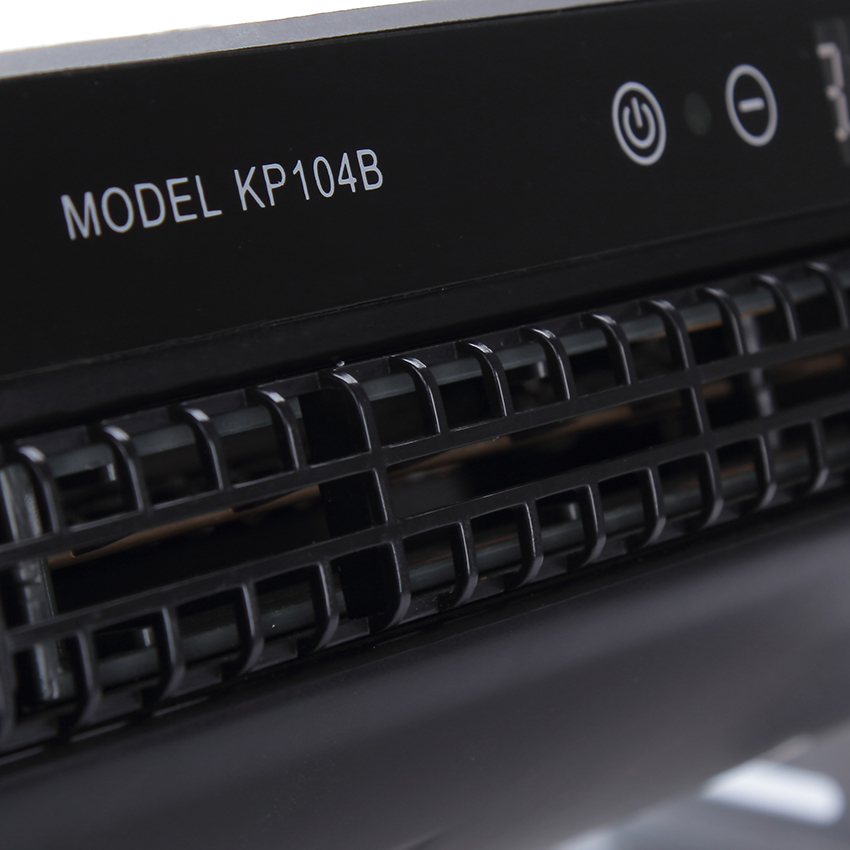

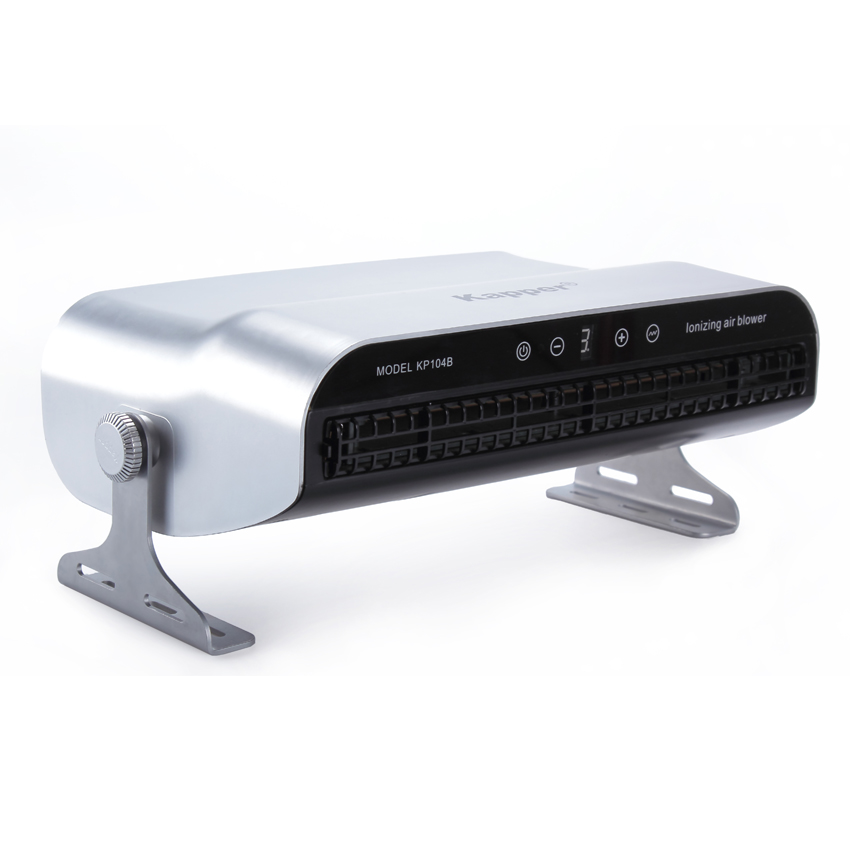

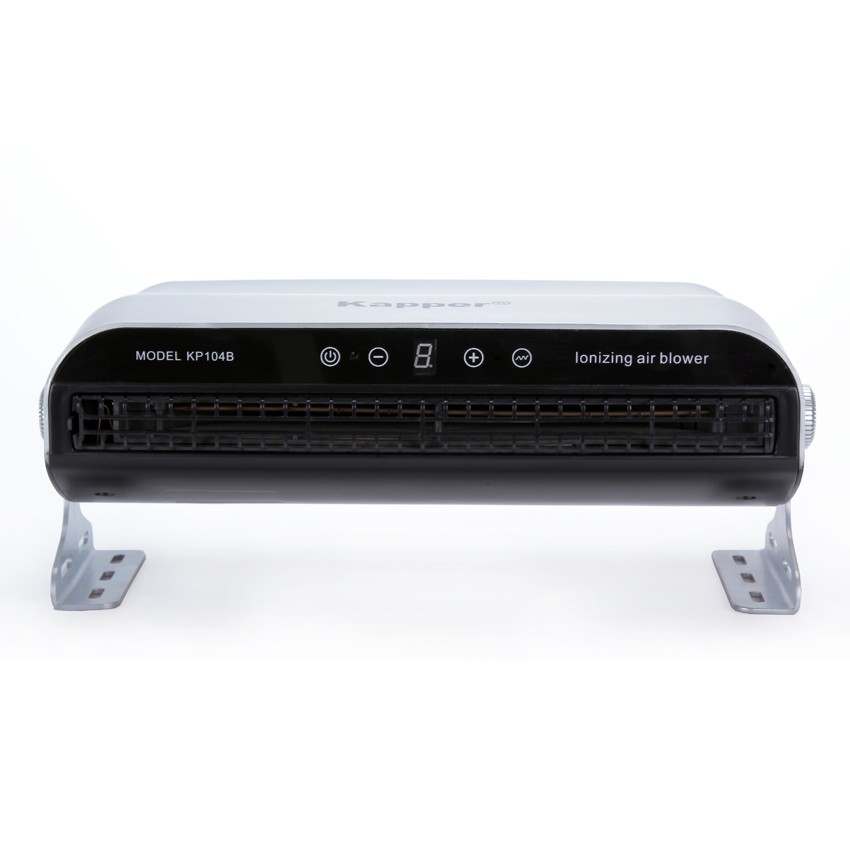

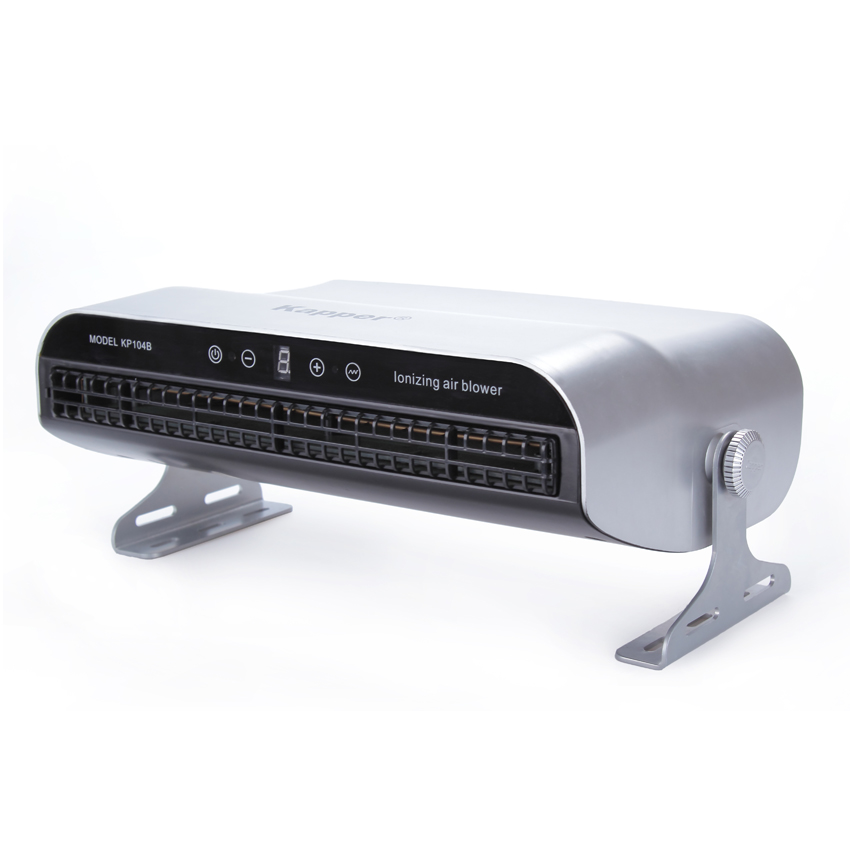

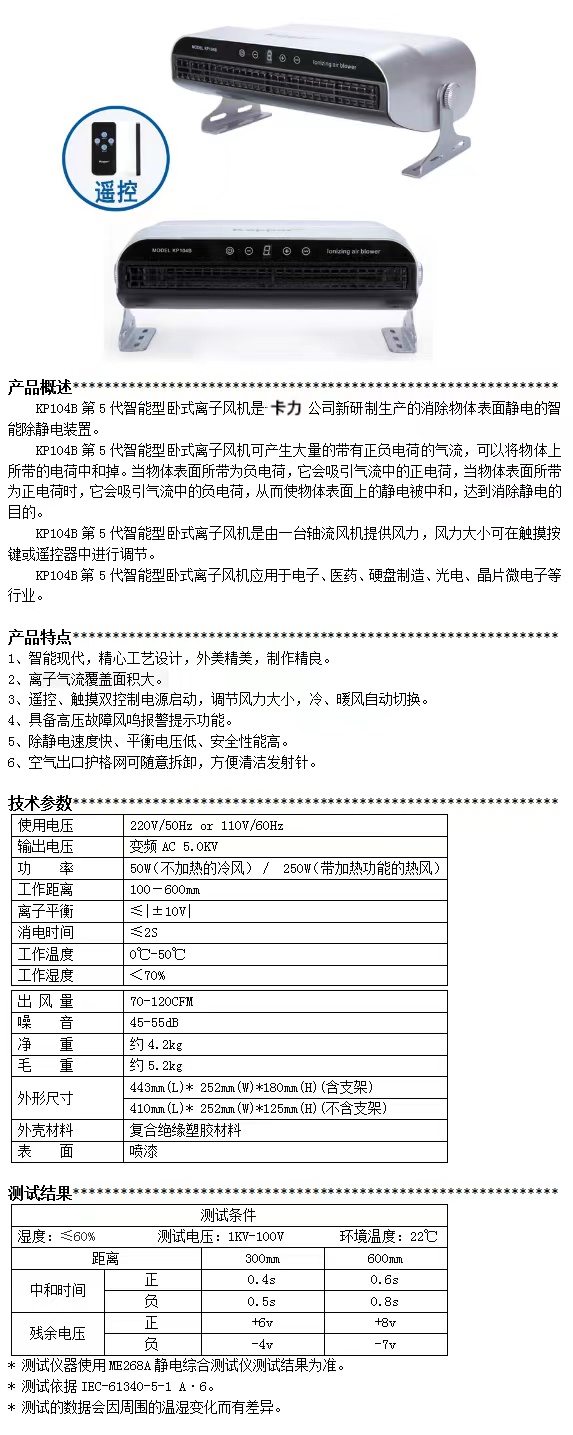

  • K104B Horizontal Intelligent Ionizer / horizontal ion fan / horizontal ionizing air blower

    K104B horizontal ion fan is a new type of intelligent anti-static device to eliminate static electricity on the surface of objects.

    K104B horizontal ion fan can generate a large amount of air flow with positive and negative charges, which can neutralize the charges on objects. When the surface of the object is negatively charged, it will attract the positive charge in the airflow. When the surface of the object is positively charged, it will attract the negative charge in the airflow, so that the static electricity on the surface of the object is neutralized and eliminated. The purpose of static electricity.

    K104B horizontal ion fan is powered by a small fan. The magnitude of the wind can be adjusted with the touch of a button or a remote control.

    It is used in precision electronics, pharmaceutical manufacturing, plastics, optoelectronics and other industries.


    1. Lightweight, compact and quiet for unobtrusive use
    2. Ion balance monitoring system with LED display
    3. Sound and light alarm for abnormal high pressure detected
    4. Automatic shut-down sensor to detect obstacles during working
    5. Fast, targeted of neutralization of electrostatic charge: ≤2S
    6. Special tungsten alloy discharge needles, designed for longevity without abrasion

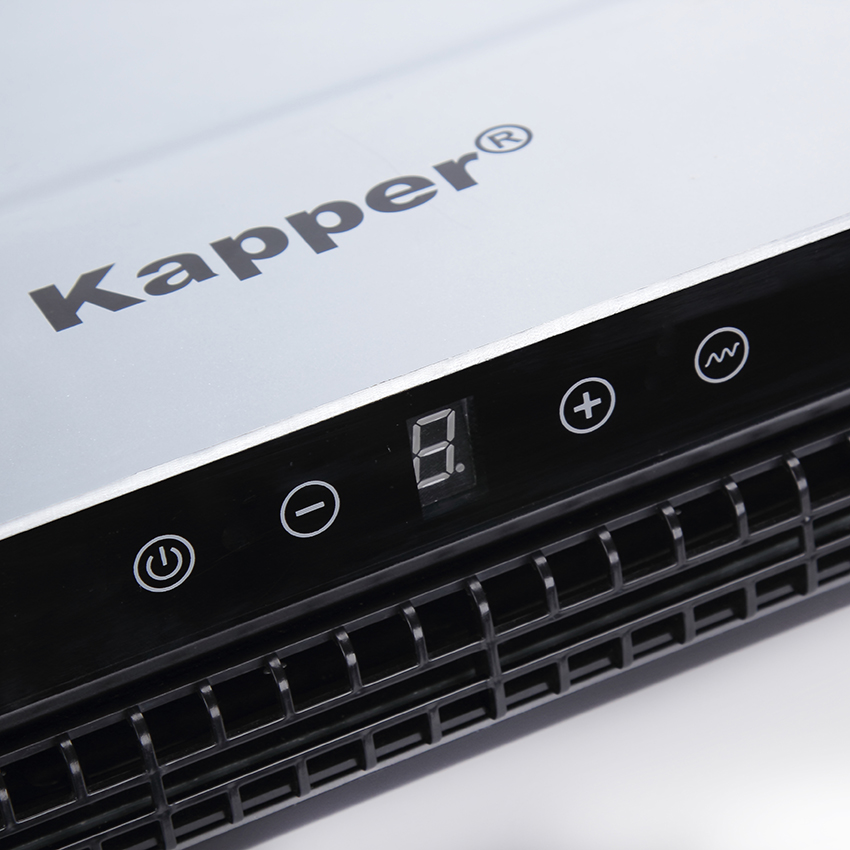

    7. Touch control or remote control: power on / off, ion airflow speeds
    8. Remote control to set the airflow speed to standardize anti-static decay of all ionizers in the same area
    9. The wind speed will be displayed through LED to achieve visual management.
    10. Automatic cleaning of electrodes (every 8h, possible to personalize)
    11. Automatic memorizing of cleaning program setted
    12. Low energy consumption, economical and ecological

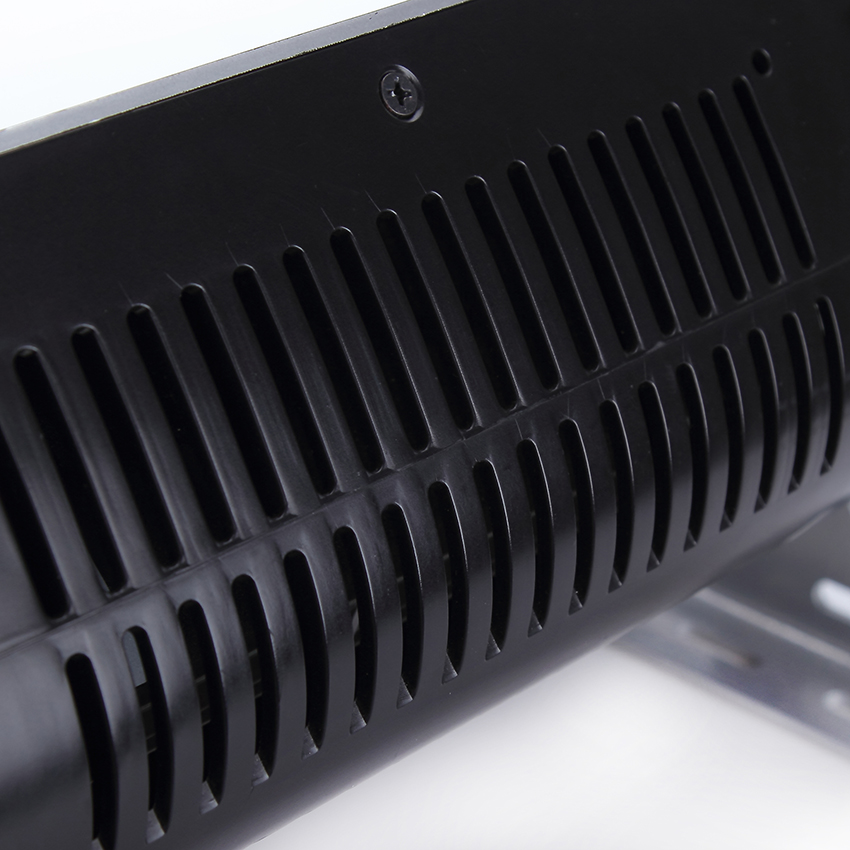

    13. Two layers of fan cover: the front cover to avoid the electronic touch with hand, may be flexibly removed, the back cover is a dust filter
    14. Clean room compatible (ISO class 5)

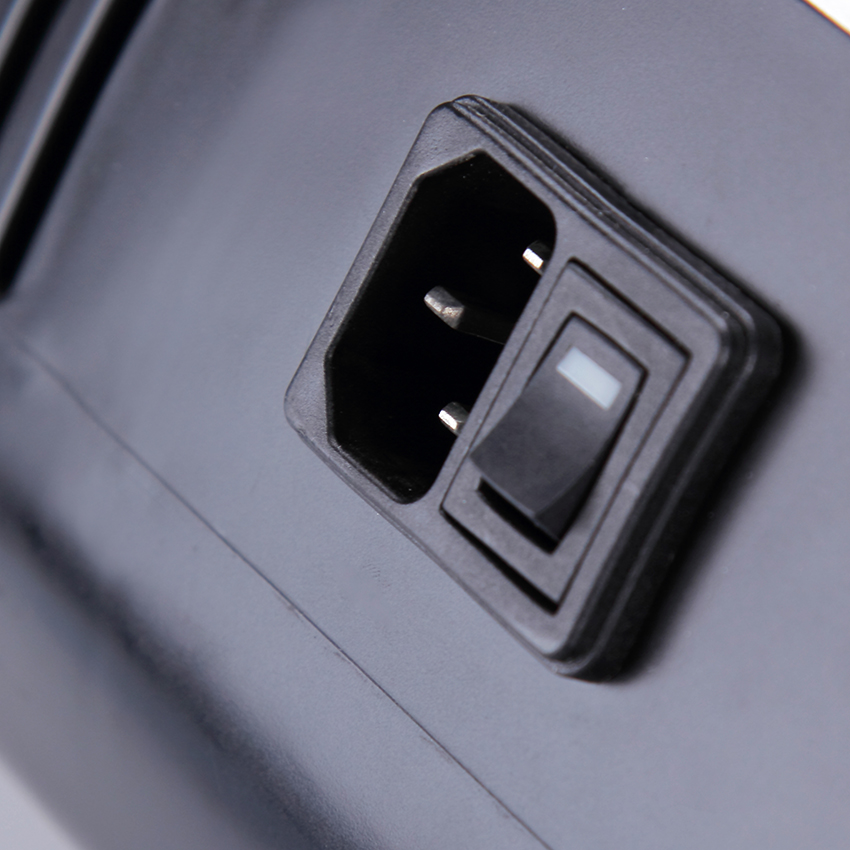

    220V/50Hz or 110V/60Hz

    Output voltage

    Inventer AC 5.0KV

    Operating distance


    Ion balance

    ± 10V ( distance of 300mm)

    Discharge time

    ≤ 2S (Distance of 300mm)

    Audible noise


    Air volume output

    160-330 CFM

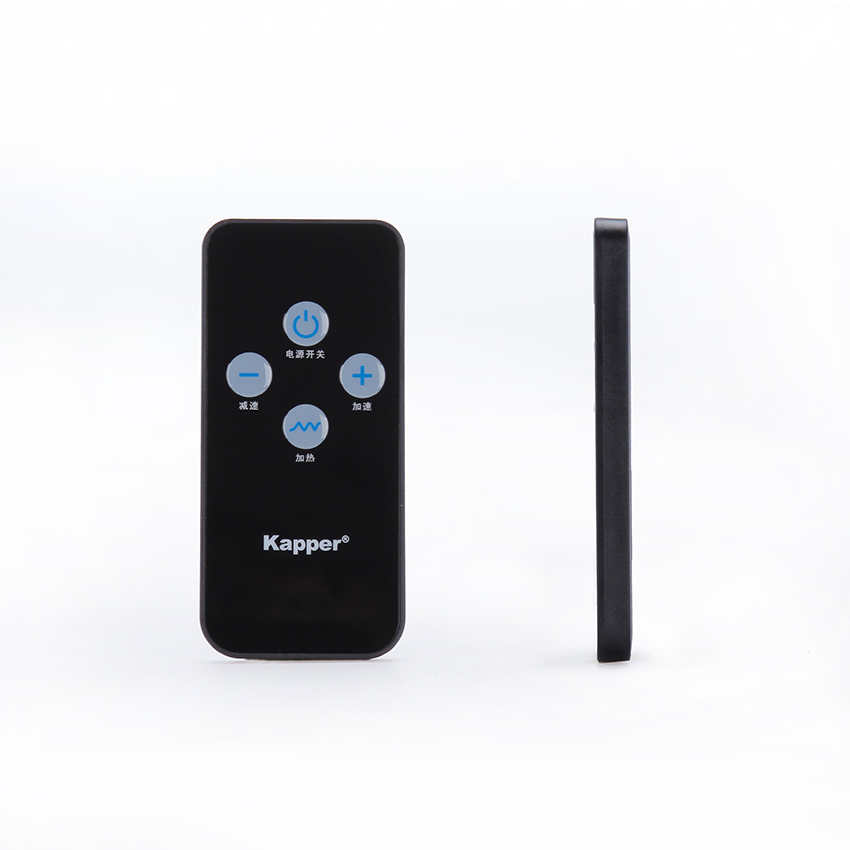

    Remote control

    Power on/off; fan speed control, program fixation, reset

    Touchscreen control

    Power on/off; fan speed; clean program; fault alarm

    Indicator Lights

    High bright LED/Fault

    Audible Alarm

    Fault of pressure

    Operating temperature


    Operating humidity

    ˂ 70%


    1000(L) x 150(W) x 130(H) mm without stand

    Gross weight





    Sand blasting


    1 year limited warranty
